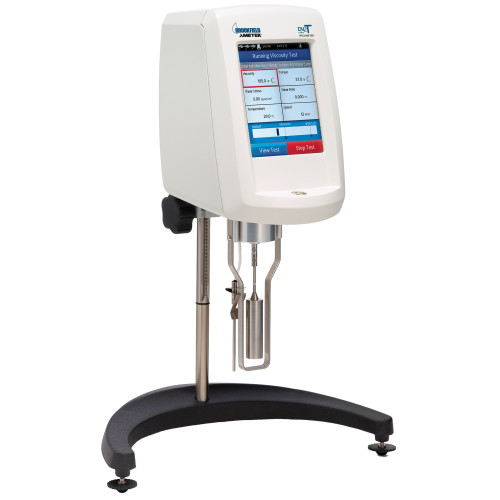

DV2T Viscometer

Add to Cart

Options

$4,975.00 - $5,988.00
Or

Info

,Availability:

Info

Availability:
Lead Times Vary by Product

Description

The DV2T Viscometer offers powerful programming capabilities and result analysis, including data averaging and QC limits with alarms. Using the new Program Generator Software, you can create user instructions with multi-step test protocols.

The 5-inch color display guides you through test creation and data gathering for fast and easy laboratory viscosity measurements. Test data can be recorded directly on a local printer or sent to a PC. Additional automated control and data collection can be achieved with optional RheocalcT software.

LV is for low viscosity materials and can measure the thinnest materials. Typical examples includeinks, oils, and solvents.
RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate, and epoxies.
HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.

Additional special springs are also available upon request.

Features & Benefits

  • Touch screen display supports multiple languages Displayed info includes viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status.
  • Enhanced security provides customizable user levels and password access
  • Built-in options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on-screen data comparison
  • Auto-range shows maximum viscosity measured with any spindle/speed combination
  • USB PC interface provides optional computer control and automatic data gathering capability
  • Download custom test programs with included PG Flash software
  • Front-facing bubble level for convenient viewing
  • Built-in temperature probe
  • Accuracy of ±1.0% of range with displayed test data
  • Repeatability of ±0.2%
  • Also available: New magnetic coupling system, durable ball bearing suspension system, quick action lab stand

DV2T Graph

Specifications


        VISCOSITY RANGEcP (mPa•s)

   SPEEDS
MODEL Min. Max. RPM Number of Increments
DV2TLV 1† 6M .1-200 200
DV2TRV 100†† 40M .1-200 200
DV2THA 200†† 80M .1-200 200
DV2THB 800†† 320M .1-200 200



SPRING TORQUE
MODEL Dyne-cm Milli Newton-m
DV2TLV 673.7 0.0673
DV2TRV 7,187.0 0.7187
DV2THA 14,374.0 1.4374
DV2THB 57,496.0 5.7496



† 1 cP achieved with the UL Adapter accessory. 15 cP on LV with standard spindles.
††Minimum viscosity is achieved with optional RV/HA/HB spindle.
M=1 million cP=Centipoise mPa·s=Millipascal·seconds

What's Included

  • Instrument
  • 6 spindles (RV/HA/HB) or 4 spindles (LV)
  • PG Flash Software
  • RTD Temperature Probe
  • Lab Stand (Model G)
  • Screen Protector
  • Carrying Case

Download

DV2T Brochure
